Technical Specs :-

𝐂𝐏𝐔 :

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

𝐂𝐇𝐈𝐏𝐒𝐄𝐓 :

AMD B650

𝐌𝐄𝐌𝐎𝐑𝐘 :

2x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 Up To 7800 (OC)

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO™

𝐕𝐈𝐃𝐄𝐎 𝐎𝐔𝐓𝐏𝐔𝐓 :

1x HDMI 2.1

1x DisplayPort 1.4

𝐄𝐗𝐏𝐀𝐍𝐒𝐈𝐎𝐍 𝐒𝐋𝐎𝐓 :

1x PCI-E x16 slot

2x PCI-E x1 slot

𝐀𝐔𝐃𝐈𝐎 :

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

𝐋𝐀𝐍 :

Realtek® RTL8125BG 2.5Gbps LAN

𝐖𝐈𝐑𝐄𝐋𝐄𝐒𝐒 𝐂𝐎𝐍𝐍𝐄𝐂𝐓𝐈𝐕𝐈𝐓𝐘 :

AMD Wi-Fi 6E

Supports Bluetooth® 5.3*

𝐒𝐓𝐎𝐑𝐀𝐆𝐄 :

2x M.2, PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

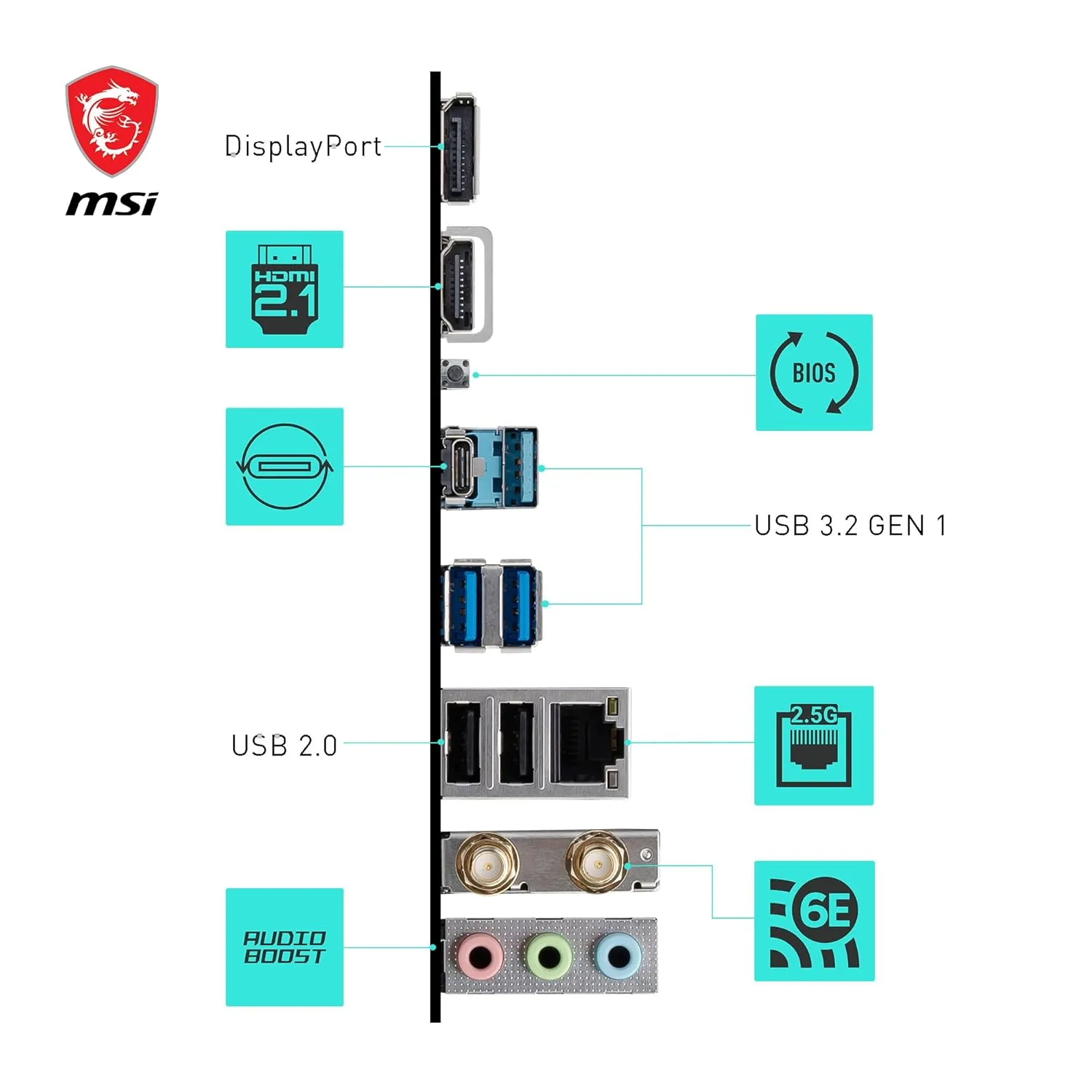

𝐑𝐄𝐀𝐑 𝐈/𝐎 :

1x Display Port

1x HDMI

2x USB 2.0 (Type-A)

3x USB 3.2 Gen 1 5Gbps (Type-A)

1x USB 3.2 Gen 1 5Gbps (Type-C)

1x Flash BIOS Button

3x Audio Connector

2x Wi-Fi / Bluetooth

𝐅𝐎𝐑𝐌 𝐅𝐀𝐂𝐓𝐎𝐑 :

Micro ATX (mATX)
